Microsoft Teams

Workspace Plan Only
The Microsoft Teams integration is available exclusively to Workspace plan users.

The Microsoft Teams Message node lets your workflows send automated messages to Teams channels through either a Webhook or Delegated OAuth connection.
It supports simple notifications via incoming webhooks or fully authenticated messages that post as the connected user, with options for plain text or rich Adaptive Cards.

Quick Overview​

Use CaseConnection TypeHighlights
Simple alerts, status updatesIncoming WebhookQuick setup, no authentication required
Power Automate or workflow endpointsWebhook (Workflow/Power Automate)Sends raw JSON payloads or signed requests
Personalized messages or mentionsDelegated OAuth (Post as user)Posts as the authenticated user, supports mentions
Adaptive Cards or formatted layoutsDelegated OAuth – CardRich messages with layout and interactivity

1. Webhook Connections​

Webhook connections are lightweight and ideal for sending quick notifications or structured payloads without full authentication.

alt text

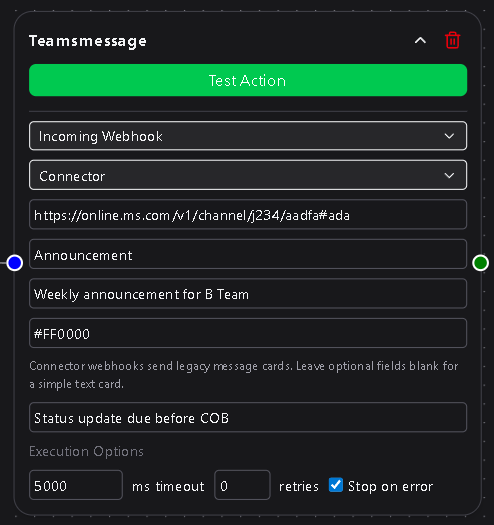

Connector Webhook​

The easiest method to send a message into a Teams channel.

  • Webhook URL – The URL generated from the “Incoming Webhook” connector in Teams.
  • Card Title (optional) – Adds a title to your message card.
  • Summary (optional) – Short descriptive text below the title.
  • Theme Color (hex) (optional) – Accent color for the card.
  • Message (required) – The text content to post.

Workflow / Power Automate Webhook​

Used when posting to Microsoft Power Automate flows or other automation endpoints.

  • Webhook URL – The endpoint URL from your Power Automate flow.
  • Payload Type – Choose between:
    • Basic (Raw JSON) – Directly send a JSON body.
    • Header Secret Auth – Adds a signed header for security.
      • Header Name and Header Secret become visible when this option is chosen. Secrets are managed under Settings → Secrets & API Keys.
  • Raw JSON Payload – The full message body or data object your flow expects.

2. OAuth Connections (Post as User)​

OAuth connections enable posting directly as a Microsoft 365 user through the Microsoft Graph API.
This provides access to Teams, channels, mentions, and Adaptive Cards.

alt text

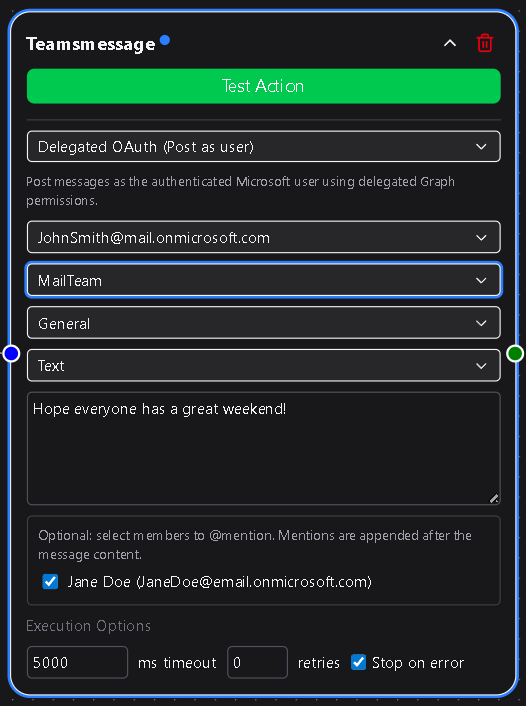

Basic Setup​

  • Connection – Select a Teams OAuth connection configured under Settings → Integrations.
  • Team – Choose one of the Teams associated with the OAuth user.
  • Channel – Select the channel within that Team.
  • Message Type – Choose Text or Card.

Text Messages​

For quick alerts or standard notifications:

  • Message – Message text. Supports DSentr’s templating (e.g., {{trigger.name}}).
  • User Mentions (optional) – Select users from the channel to tag them.

Card Messages​

For structured layouts or visual summaries:

  • Card Type – Choose Simple Card Builder or Custom JSON.
    • Simple Card Builder – Offers easy fields for:
      • Card Title (optional)
      • Card Message (required)
    • Custom JSON – Accepts full Adaptive Card JSON for advanced designs.

3. Choosing the Right Option​

![Placeholder – Comparison image showing Webhook vs OAuth path]

ScenarioRecommended Method
Fast, one-way notificationsConnector Webhook
Sending structured data to Power AutomateWorkflow / Power Automate Webhook
Posting as yourself or mentioning othersDelegated OAuth
Sending Adaptive Cards or custom layoutsDelegated OAuth – Card

4. Notes and Best Practices​

  • Webhook (Connector) is the simplest and fastest setup, though Microsoft classifies it as legacy. It remains functional and is widely used for system notifications.
  • Power Automate webhooks expect strict payload structure—test with sample data before deploying.
  • OAuth connections provide the most flexibility but require setup under Settings → Integrations with user consent.
  • When using Card messages, verify JSON structure with the Adaptive Card Designer before saving.
  • Ensure your connection or webhook URL has permission to post to the selected channel.

5. Setting Up Delegated OAuth for Teams​

Setting up OAuth requires configuration on Microsoft’s side before it can be used within DSentr.
You’ll need to register an application in Azure Active Directory, grant the correct permissions (scopes), and enable Graph API access for Teams messaging.

Refer to Microsoft’s official documentation for current steps and scopes:
Microsoft Graph permissions for Teams messaging

Once configured, the connection can be created under Settings → Integrations in DSentr, ready for use by any workspace member with access.

The Teams Message node connects DSentr automations directly to your collaboration environment.
Whether you’re firing a simple alert or delivering a fully formatted card with live data, this node keeps your workflows and your team in sync.
